DATEX-OHMEDA Aestiva 5

GE Datex Ohmeda Aestiva 5 Features

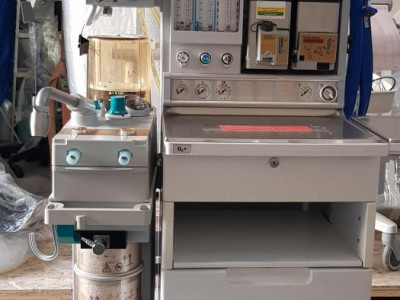

The GE Datex Ohmeda Aestiva 5 is an anesthesia machine that comes with an integrated breathing circuit. The Aestia 5 comes with two options for ventilators the 7100 or the 7900 SmartVent. These ventilation options offer the capabilities of an intensive care ventilator without having a separate machine in the ICU or operating room. The GE anesthesia Machine allows for the ventilation of a wide range of patients from pediatric to adults. The flexibility of the anesthesia/ventilation machine gives the health care work a higher level of control along with improved patient safety. On top of The GE Aestiva 5 having ventilation options it also offers low and minimal flow anesthesia. This allows for reduced agent consumption.

• Advanced Breathing System
• Ventilation Options; 7100, 7900 SmartVent
• 2 or 3 vaporizer configurations
• Dual air flow tube for low flow
• Customizable drawer and shelves
• Built-in machine diagnostics

GE Datex Ohmeda Aestiva 5 Specifications

Dimensions (2 Vaporizers)

• Height: 53.4” (135.8 cm)
• Width: 29.5” (75 cm)
• Depth: 32.7” (83 cm)
• Weight: 300 lbs (136 kg)

Dimensions (3 Vaporizers)

• Height: 53.4” (135.8 cm)
• Width: 36.6” (93 cm)
• Depth: 32.7” (83 cm)
• Weight: 340 lbs (154 kg)

Work Surface

• Height: 34.5” (87.5 cm)
• Width: 18.5” (47 cm)
• Depth: 12.4” (31.5 cm)

Modes of Ventilation

• Volume Control Mode: With tidal volume compensation
• Pressure Mode: (optional)

Ventilation Parameters

• Tidal volume range: 45 to 1500 mL
• Incremental Settings: 45 to 100 mL (increments of 5 mL); 100 to 300 mL (increments of 10 mL); 300 to 1000 mL (increments of 25 mL); 1000 to 1500 mL (increments of 50 mL)
• Pressure (PInspired) Range: 5 to 50 cm H2O (increments of 1 cm H2O) (Pressure mode)
• Rate: 4 to 65 breaths per minute (increments of 1 breath per minute)
• Inspiratory/expiratory Ratio: 2:1 to 1:6 (increments of 0.5)
• Inspiratory Pause Adjust: 5% to 60% of inspiratory time (increments of 5%)

Positive End Expiratory Pressure (PEEP)

• Type: Integrated, electronically controlled
• Range: OFF, 4 to 30 cm H2O (increments of 1 cm H2O)

Ventilator Monitored Values

• Tidal volume: 5 to 1500 mL, 1 mL resolution
• Minute volume: 0 to 99.9 L/min, 0.1 L/min resolution
• Breathing rate: 0 to 65 breaths per minute, 1 breath per minute resolution
• Oxygen Percentage: 5% to 110%, 1% resolution
• Airway pressure: –9 to 99 cm H2O, 1 cm H2O resolution

Delivery/Monitoring Accuracy

• Volume delivery: > 200 mL = better than ±10% Set TV; 75 to 200 mL = better than ±20 mL; < 75 mL = better than ±15 mL
• Pressure (PInspired) Delivery Repeatability: ±2 cm H2O
• PEEP Delivery Repeatability: ±2 cm H2O
• Volume Monitoring: > 200 mL = better than ±10%; 75 to 200 mL = better than ±20 mL; < 75 mL = better than ±15 mL
• Pressure Monitoring: Better than ±2 cm H2O or ±5% of reading (whichever is greater)

Delivery

• Vaporizers: Tec 5, Tec 6 Plus, Tec 7
• Number of Positions: 2 or 3
• Mounting: Tool-free installation Selectatec manifold interlocks and isolates vaporizers

Ventilator Pneumatics

• Pressure Range at Inlet: 240 kPa to 700 kPa/35 psig to 100 psig
• Peak Gas Flow: 70 L/min + fresh gas flow
• Flow range: 2 to 70 L/min
• Flow Compensation Range: 200 mL/min to 15 L/min

Battery Back-up

• Backup power: Demonstrated battery time under typical operating conditions is 90+ minutes when fully charged. Battery time under extreme conditions is 30 minutes.
• Battery type: Internal rechargeable sealed lead acid
