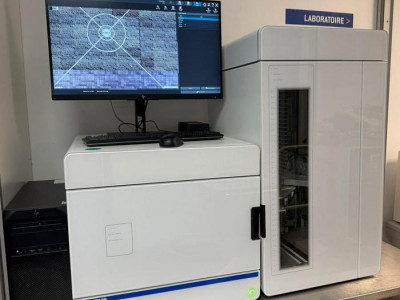

The VS200-BU Slide Scanner enables applications ranging from advanced research to specialized digital pathology. The SLIDEVIEW™ VS200 System is designed to capture a wide variety of specimens and stains with multiple magnifications, flexible slide sizes, and five versatile imaging modes. Exceptional whole-slide image quality allows your lab to fully realize the potential of your samples.
Flexible imaging modes
Discover more details in your samples with five imaging modes: brightfield, polarization, fluorescence, darkfield and phase contrast in one system, and the ability to combine multiple techniques in a single scan.
Support for glass slides and plates
Mixed Batch Scanning: An easy-to-use slide tray lets you scan 26 × 76 mm (1 × 3 in), 52 × 76 mm (2 × 3 in), 76 × 102 mm (3 × 4 in), and 102 × 127 mm (4 × 5 in) slides in a single batch.
Automated slide detection: An RFID system detects different formats and scans them in the same batch, saving time and optimizing throughput.
Data management
Easily analyze, share and archive your data
Centralized Image Storage: Easily manage your images with the optional SQL Net Image Server (NIS) database.
Secure Web Sharing: Easily store and share your images online to collaborate with colleagues, research teams, or remote consultants.
Access Control: Control access to your data with individual access rights.
Multiple File Formats: Scan and export images in VSI, OME-TIFF, and DICOM formats.
LIS Integration: Query the laboratory information system (LIS) for additional metadata and save scans in DICOM format for direct upload to an image management system.
Automated Workflows: Enable automatic uploads to the NIS SQL database for simplified data management.
VSI Format for Advanced Microscopy: Developed by Evident, the VSI file format addresses the specific needs of microscopic imaging. Its growing adoption by various projects and companies ensures long-term compatibility and support.
Observation Methods: Brightfield, Reflected Brightfield (optional*2), Darkfield, Phase Contrast (optional*3), Single Polarization (optional*4), Fluorescence (optional), Fluorescence Optical Sectioning with Speckle Illumination (SILA Module optional).
Optical frame illuminator: Integrated Köhler illumination for transmitted light; high intensity LEDs and high color rendering (up to 50,000 hours).
Objectives: Compatible 2X, 4X*4, 10X*5, 20X, 40X*5, 60X*5 and 100X*5 objectives for 6-position motorized nosepiece (including selected oil immersion, silicone oil immersion and phase contrast objectives),
Automatically controlled XY motorized stage
Automatically controlled motorized focus
Built-in 2/3 inch CMOS color camera, pixel size 3.45 μm × 3.45 μm, high sensitivity, high resolution
Scanning unit capacity
Slide Tray: Up to 35 slide trays, 210 slides maximum
Pixel resolution (color camera)
UPLXAPO20X (NA 0.8): 0.274 µm/pixel
Scanning time
Brightfield: Approx. 1.5 minutes (20X objective, 15 mm × 15 mm scanning area)
NOVEM Widefield Fluorescence: approximately 6.5 minutes (20X objective, 15 mm × 15 mm scanning area, 4 fluorescence channels, 10 ms exposure each)
Software: Automatic sample detection (generic deep learning and TruAI), automatic barcode reading, autofocus, autoscan, autostitch, pause and resume scanning, Z-stack imaging, extended focus imaging (EFI), image formats: VSI, JPEG, TIFF, DICOM, synchronized multi-image display, continuous zoom, zoom while scanning, annotations, screen capture, slide loader control
UPLFLN4X lens, illuminator with flys eye lens, motorized mirror turret, motorized filter wheel
SILA: laser combiner up to 6 lines and jammer
Price: contact us
E9701314
VS20-LOAD-UG BU to BU-L
Cade EAN 4057981013143
E9701313
VS20-LOADER Loader for BU-L
EAN code 4057981013136
E9701319
VS20-ST13X5 1x3 Tray Set of 5
EAN code 4057981013198
035425
MAINS CABLE WITH ELBOW
E9701310
VS20-BU Base Unit
EAN code 4057981013105
Export Control Classification No.: SA982 US
E9701312
VS20-POWSUP Power Supply
EAN code 4057981013129
N5701900
UPLXAPO10X Objective
EAN code 4953170401664
E9701331
VS20S-CONV VSI Image Export
EAN code 4057981013310
Expont Control Classification No.: EAR9
035425
MAINS CABLE WITH ELBOW
E9701318
VS20-ST13 1x3 Tray
EAN code 4057981013181
