Datospir Touch Spirometer
DATOSPIR TOUCH Diagnostic F
DATOSPIR TOUCH touchscreen desktop spirometer. Different versions are available. Includes W20s software for data management from the PC.

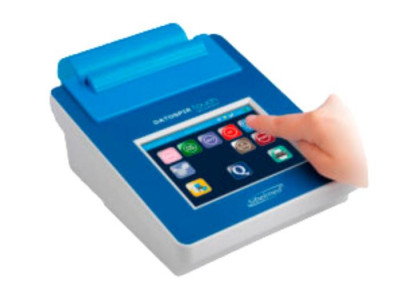

The Datospir Touch spirometer features a high-resolution color touch screen.
It has 3 operating modes:
Occupational Medicine (OC) Mode: Aimed at prevention centres and health insurance companies. It allows for quick and easy FVC and bronchodilation tests to be performed for the early detection of work-related lung diseases.
Primary Care Mode (PC): Aimed at Primary Care centres. It allows the main tests to be carried out with interactive aids to obtain spirometries of similar quality to those of a specialised centre (Quality control of spirometry). It allows the detection and monitoring of the most prevalent respiratory diseases such as ASTHMA or COPD.
Diagnostic Mode (DG): Aimed at specialized pulmonary function laboratories for the diagnosis of lung diseases. This is the most comprehensive mode, allowing bronchoconstriction tests and more detailed monitoring of maneuvers, in addition to the functionalities of the OC and AP modes.
Main features:
High resolution color touch screen
Internal printer
Rechargeable battery
3 modes of operation: Primary Care, Occupational Medicine or Diagnosis
Spirometry quality control program: test quality grades, accuracy verification, and calibration program
Modules: SpO2, PIM-PEM, Sniff and Weather Station
Database of over 3000 tests with graphics
Tests: FVC, VC, MVV, Bronchodilation, Bronchoconstriction
Simultaneous F/V and V/T graphs
Graphic incentives for adults and children
On-screen help
Integrated temperature sensor
Connectivity via USB, BLUETOOTH or ETHERNET*
Interoperability compatible with HL7 (Spirometry CDA)**
Suitable for telemedicine
It has a PIN code (for compliance with the Organic Law on Data Protection, LOPD)
*Ethernet: Internet connectivity for sending tests by email and consulting data remotely.
**HL7: Health Level Seven is an international standard for the interoperability of health systems information. (Using W20s software).
Options:
DATOSPIR TOUCH Easy D SPIROMETER Occupational/Primary Care Mode with Disposable transducer.
DATOSPIR TOUCH Easy T SPIROMETER Occupational Mode / Primary Care with Turbine transducer
DATOSPIR TOUCH Easy F SPIROMETER Occupational Mode / Primary Care with Fleisch transducer
DATOSPIR TOUCH Diagnostic D SPIROMETER Diagnostic Mode with Disposable Transducer
DATOSPIR TOUCH Diagnostic T SPIROMETER Diagnostic Mode with Turbine transducer
DATOSPIR TOUCH Diagnostic F SPIROMETER Diagnostic mode with Fleisch transducer
