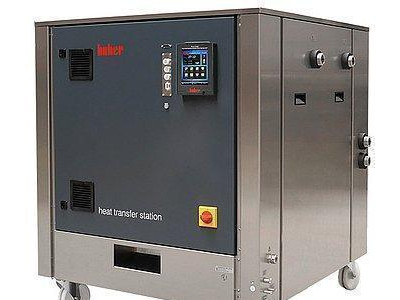

The Huber HTS 30-H24 Heat Transfer Unit is a high-performance unit that was in working environment and is in very good condition, offering a 30-day warranty. This equipment is a precision-engineered heat exchanger unit with a circulation pump, stainless steel housing, atmospheric open expansion tank, and external plate heat exchanger. The extensive capabilities of the Pilot ONE controller, including a 5.7-inch TFT touchscreen, USB and network connections, and multi-language support, make it a versatile and advanced addition to laboratory settings. The customizable and expandable features of the Pilot ONE offer self-optimizing internal and cascade control, selectable temperature control mode, programmer with multiple programs, ramp functions, and various safety features. This equipment is best suited for applications requiring precise and reliable temperature control and offers a cooling power of 22kW / 30kW with a wide and regulated temperature range. Key applications include temperature controlled processes in chemical engineering, pharmaceutical manufacturing, and scientific research facilities.
Key Features
- Integrated circulation pump
- Pilot ONE controller with 5.7-inch TFT touchscreen
- USB and network connections
- Multi-language support
- Safety features such as overtemperature protection and alarm systems
- Expandable capabilities with self-optimizing control
Specifications
- Cooling power: 22kW / 30kW
- Temperature range: Primary side - 0 to 90°C, Secondary side - 5 to 90°C
- Digital interface: USB, Ethernet, and RS232
- Language support: 13 languages
- Coolant compatibility: Water
- Power supply requirement: 400V 3~ 50Hz
- Weight: 270 kg
- Dimensions: 940x1050x1130 mm
- Warranty: 30-Day Warranty, 100% Parts and Labor
Weight
Metric: 270 kg
Imperial: 595.25 lb
Dimensions
Metric: 940 cm x 1050 cm x 1130 cm
Imperial: 370.08 in x 413.39 in x 445.67 in
