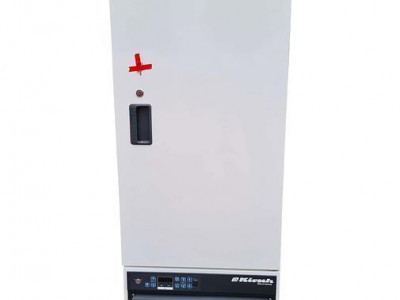

This listing is for a Kirsch MED-200 Medication Refrigerator
Safe storage of medicines and vaccines
Highest user-friendliness
Powerful chiller for maximum temperature constancy even after long door openings
Aluminium inner container
High energy efficiency
Visual and acoustic alarm signal even in case of power failure
Freeze protection
Key switch against manipulation
Comfort access
Height-adjustable drawers
Automatic defrosting
Advantages PRO-ACTIVE line
Your introduction to KIRSCH quality
Highest reliability
Robustness
Temperature stability
Flexibility
Maximum safety
Reduction of the power consumption by up to 60%.
Faster response time in the event of imminent faults thanks to proactive alerting
Minimization of the temperature deviation in the cold store
Highest storage safety through coordinated components
The MED 200 PRO-ACTIVE in detail
PRO-ACTIVE control: Permanent, proactive monitoring of performance data and alarming in case of deviations; worldwide most accurate temperature control thanks to two standard PT-1000 sensors
Outer housing made of galvanised sheet steel (rust protected), with white, scratch-resistant powder coating. Length of the plug cable approx. 2.8 m.
Adjustable feet in the front area to compensate for uneven floors.
Interior made of smooth aluminium with colourless protective coating. Adjustable rails (15 mm grid) for flexible interior design.
Interior consisting of four drawers on roller runners with locking device and a plastic-coated grille on supports. Each drawer has one adjustable longitudinal and six adjustable transverse dividers. Storage area per drawer = 0.13 m2.
Insulation with 50 mm extra thick, made of high-quality, pressure-foamed and environmentally friendly material. Energy-saving.
Door with easily replaceable plastic magnetic sealing frame, lockable.
Door hinge exchangeable (also retrofitting), standard with right-hand hinge.
Recirculating air cooling with two axial fans, switches off automatically when the door is opened, ensures even temperature control and reduces the temperature gradient to a minimum.
Automatic defrosting, with thermal control and time limit.
Evaporation of condensation water in the refrigeration machine room.
Electronic temperature control protected against manipulation by key switch. Membrane keyboard with digital temperature display and minimum/maximum temperature memory.
Data documentation readable via USB interface using USB stick and KIRSCH Datanet software.
Warning functions with optical and acoustic alarm signal in case of temperature deviation. Power failure alarm, the monitoring unit remains in operation for approx. 30 hours due to a rechargeable battery.
Alarm forwarding via potential-free contact possible (e.g. to mobile phone with optional GSM module or connection to central control system).
Freeze protection against minus temperatures.
Forced-ventilated, hermetically sealed, energy-saving, low-noise, service-friendly. Supply and exhaust air is via front ventilation grille.
Cooling (Cooling technology): dynamic (circulation cooling)
Lowest temperature: + 2°C
alarm: opticalacoustical
automatic defrost: with
Explosion proof: no
Glass door: without
lockable: yes (door)
Application area: pharmaceutical refrigerator
Cooling technology: refrigerator
Average consumption: 0,760 kWh/24 h
Width inside (refrigerator): 430 mm
Height inside (refrigerator): 870 mm
Depth inside (refrigerator): 430 mm
Depth (refrigerator): 546 mm
Width (refrigerator): 540 mm
Height (refrigerator): 1220 mm
Capacity (gross): 170 l
Shipping weight: 80,00 Kg
Product weight: 69,00 Kg
