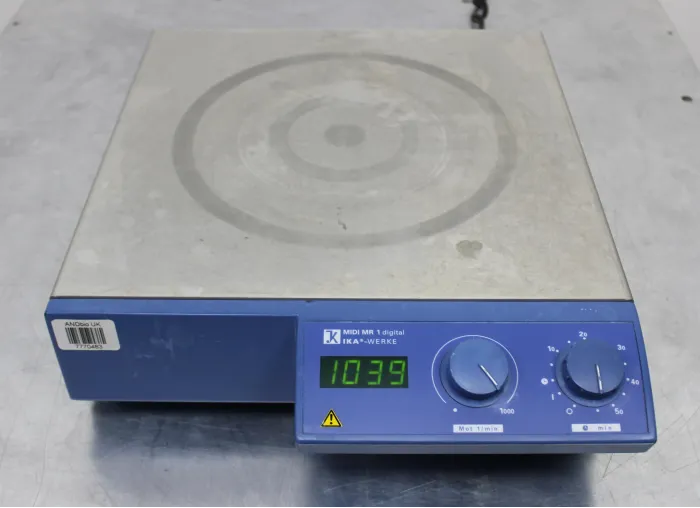

The IKA MIDI MR 1 Digital Magnetic Stir Plate is a powerful magnetic stirrer without heating function, suitable for stirring quantities up to 50 liters (H2O). It features a flat, sturdy stainless steel casing, non-locking motor, infinitely variable speed, digital LED speed display, and a timer for both timed and continuous operation. The integrated USB and RS 232 interfaces allow for seamless connectivity. The stir plate has a stirring quantity of 50 liters per stirring position, maximum load of 75 kg, and motor rating output of 19 W. Its speed range is 0 - 1000 rpm, and it has a stirring bar length of up to 80 mm. Possessing a self-heating setup plate and protection class IP 21, this stir plate provides reliable performance within a permissible ambient temperature of 5 - 40 °C. It operates at a voltage of 230 V and frequency of 50/60 Hz, with a power input of 80 W. Fuse protection is provided with 2x T4A 250V. The stir plate has dimensions of 360 x 110 x 430 mm and weighs 10.7 kg. Suitable applications include chemistry, biology, and pharmaceutical research labs. The item is in used condition, without the inclusion of any software or computer.
Key Features
Powerful magnetic stirrer without heating function
Infinitely variable speed with digital LED display
Integrated USB and RS 232 interface for connectivity
Stirring quantity up to 50 liters (H2O)
Stainless steel casing with non-locking motor
Permissible ambient temperature of 5 - 40 °C
Protection class according to DIN EN 60529 IP 21
Specifications
Number of stirring positions: 1
Stirring quantity max. per stirring position (H2O): 50 l
Maximum load: 75 kg
Motor rating output: 19 W
Speed range: 0 - 1000 rpm
Stirring bar length max.: 80 mm
Set-up plate material: stainless steel 1.4301
Set-up plate dimensions: 350 x 350 mm
Dimensions (W x H x D): 360 x 110 x 430 mm
Weight: 10.7 kg
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
RS 232 interface: Yes
USB interface: USB-B
Voltage: 230 V
Frequency: 50/60 Hz
Power input: 80 W
Fuse: 2x T4A 250V
Weight
Metric: 10.7 kg
Imperial: 23.59 lb
Dimensions
Metric: 430 cm x 110 cm x 360 cm
Imperial: 169.29 in x 43.31 in x 141.73 in
