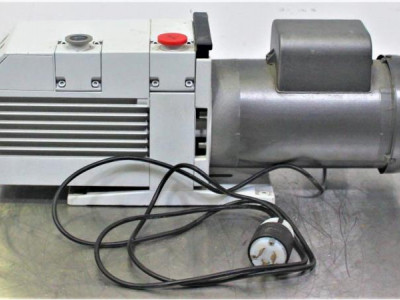

Used LEYBOLD D16B

As the LEYBOLD TRIVAC D16B vacuum pumps are oil-lubricated vacuum pumps, they have the unique capability of being wired for both low 230V 50/60Hz Voltage and 400V 50/60Hz High Voltage. These pumps are especially renowned for their exceptional vapor handling capabilities. With two vacuum stages, they provide excellent ultimate vacuum pressure needed for various laboratory and research applications such as turbo pump backing, diffusion pump backing, vacuum ovens, mass spectrometers, and more. The Leybold D16B pump features a displacement of 12 cfm, pumping speed of 19.8 m3/h, and ultimate pressure of < 2x10-3 mbar. Its inlet flange is DN 25 KF, making it a versatile choice for laboratories and research facilities alike.

Key Features

• Oil lubricated vacuum pump
• Wired for low 230V 50/60Hz Voltage or 400V 50/60Hz High Voltage
• Ultimate vacuum pressure of < 2x10-3 mbar
• Displacement of 12 cfm and pumping speed of 19.8 m3/h
• Versatile inlet flange DN 25 KF

Specifications

• Displacement: 12 cfm
• Pumping Speed: 19.8 m3/h
• Ultimate Pressure: < 2x10-3 mbar
• Inlet Flange: DN 25 KF

Weight

Metric: 49.895 kg
Imperial: 110 lbs

Dimensions

Metric: 25.4 cm x 17.78 cm x 25.4 cm
Imperial: 10 in x 7 in x 10 in
