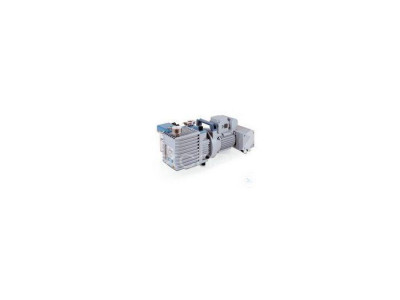

Vacuubrand Chemical HYBRID ™ pump RC 6.
Max. Pumping speed 50/60 Hz (m³ / h): 5.9 / 6.9.
Final vacuum (abs.) (Mbar): 2 x 10³
Final vacuum (abs.) With gas ballast (mbar): 1 x 10²
Connection suction side: small flange KF DN 16.
Connection pressure side: hose shaft DN 10 mm
Dimensions (L x W x H), approx. (mm): 510x305x230.
Weight, approx. (kg): 24.2.
Rated voltage / Mains frequency: 230 V / 50-60 Hz.
Final partial vacuum (abs.) (mbar): 4 x 10.
Oil filling (B-oil) min./max. (l): 0.34 / 0.53.
Water vapor compatibility (mbar):>> 40 mbar.
Rated motor power (kW): 0.37.
Scope of delivery: Pump completely assembled, after oil filling (bottle 0.5 l included) ready for use, with Manual. Old article number: 698560.
