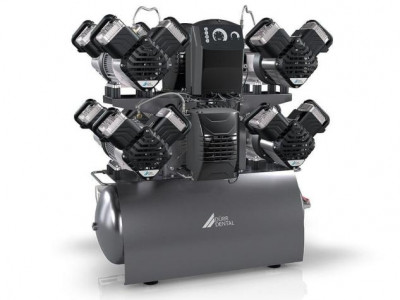

Quattro P20 compressor with membrane drying system
Highest air delivery performance in the smallest possible footprint for dental laboratories and large practices. Redundant system for maximum reliability – for up to 16 practitioners.
Technical data Quattro Tandem:
- Flow rate at 5 bar1 (l/min) 1032/1172
- Pressure range2(bar) 5.5 – 7.5
- Sound level dB(A) 75/76
- Voltage (V)3 400
- Frequency (Hz) 50/60
- Tank capacity (l) 90
- Sound level at 5 bar with housing dB(A) –
- Dimensions (H x W x D cm) 114 x 115 x 77
- Weight (kg) 300
1: Flow rate without dry air
2: A pressure reducer is available as an option
