Maico EASYTYMP manual tympanometer
MAICO EASY TIMP tympanometer
Handheld tympanometer for very fast tympanometric testing and reflex screening. Probe tone 226 Hz, optional high-frequency probe tone 1 kHz. Data transfer to PC.
Main features:
Very fast and totally reliable impedance measurements
Probe tone 226 Hz, optional high frequency probe tone 1 kHz. Impedance software data can also be transferred to a PC
Reflex frequencies 500 Hz, 1 kHz, 2 kHz, 4 kHz
Automated Testing: Self-Explanatory
Full color, high resolution display
Stores more than 1,000 measurements
Very fast middle ear measurements
The EasyTymp audiometer is the ideal handheld device for middle ear screening tests. It performs reliable tympanometry and ipsilateral reflex testing in just a few seconds. The intensities of the four frequencies of the ipsilateral reflex test are automatically increased until a reflex is detected or the maximum is reached.
Protocol selection
All available test protocols can be easily selected with one hand. Available test protocols: Tympanometry with 226 Hz, Tympanometry and automatic reflex or Tympanometry with reflex at 90 dB. The optional high-frequency probe tone of 1 kHz is ideal for providing reliable results when testing newborns.

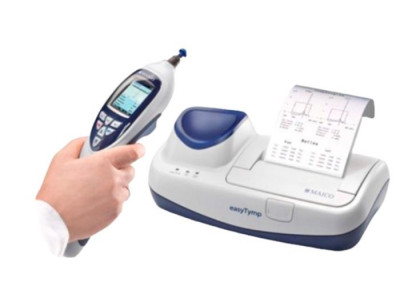

Charging base for EasyTymp
The EasyTymp handheld tympanometer charging base serves as a recharging docking station and is ready for insertion of the eartipbox.
Standard components
The EasyTymp pocket unit with rechargeable battery, probe tip and probe tip replacement, power supply unit, ground box with claws and ground removal tool, calibration cavity, charging case and impedance software
Optional accessories
External probe (35 cm) with status lights, license for 1 kHz high-frequency tone probe, cradle, power supply unit and additional rechargeable battery, wireless thermal printer, power supply for easyTymp handheld unit, wall mounting kit for cradle.
