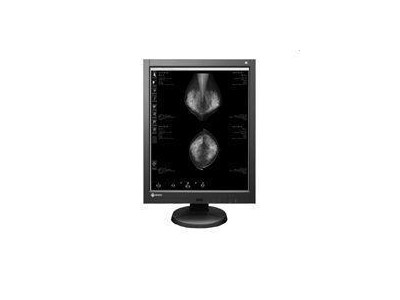

Eizo GX540 (5MP) display monitor screen
Model Variations GX540-CL: Clear Base
GX540-CL-P: Pairing
Cabinet Color Black
Panel
Type Monochrome (IPS)
Backlight LED
Size 54 cm / 21.3
Native Resolution 2048 x 2560 (4:5 aspect ratio)
Viewable Image Size (H x V) 337.9 x 422.4 mm
Pixel Pitch 0.165 x 0.165 mm
Grayscale Tones 10-bit (DisplayPort) : 1,024 from a palette of 16,369 tones
8-bit: 256 from a palette of 16,369 tones
Viewing Angles (H / V, typical) 176° / 176°
Brightness (typical) 1,200 cd/m2
Recommended Brightness for Calibration 500 cd/m2
Contrast Ratio (typical) 1200:1
Response Time (typical) 25 ms (on / off)
Video Signals
Input Terminals DVI-D (dual link) x 1, DisplayPort x 1
Digital Scanning Frequency (H / V) 31 - 135 kHz / 24 - 61 Hz
Frame synchronous mode: 24.5 - 25.5 Hz, 49 - 51 Hz
FDA 510(k) Clearance Yes (for Breast Tomosynthesis, Mammography, and General Radiography)
Supplied Accessories (May vary by country. Please contact EIZO for details.) AC power cord, dual link signal cable (DVI-D - DVI-D), signal cable (DisplayPort - DisplayPort), USB cable, Utility Disk (RadiCS LE, ScreenManager Pro for Medical, user's manual)
LOCATED IN OUR MIAMI WAREHOUSE
