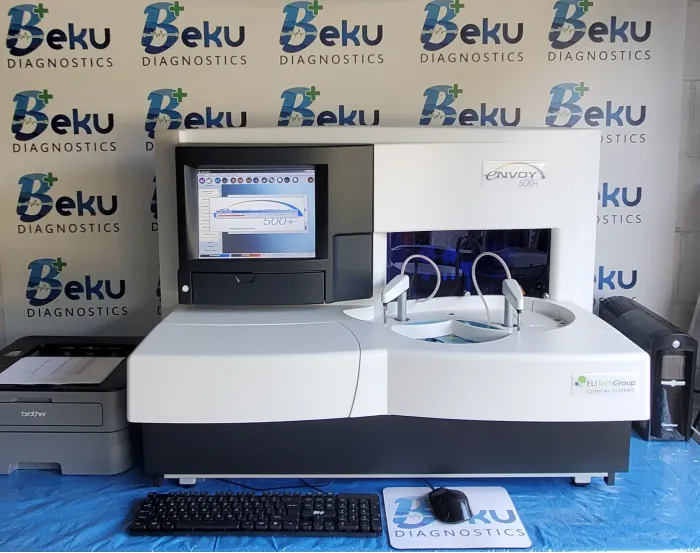

The Envoy 500+ performs approximately 490 tests per hour, allowing it to handle the workload of the busiest labs. The Envoy 500+ delivers the time and money saving features your lab requires with an integrated four-parameter dry ISE module, reusable glass cuvettes, positive sample and reagent identification, clot detection, liquid level sensing and many more. The system is simple to use, open reagent chemistry analyzer. It has minimal use and it is in excellent condition! Annual Preventive Maintenance has been performed.
TECH SPECS
- Operative method: Random access
- Kind: Discrete
- Assay Technology: Colorimetry and immunoturbidimetry
- ISE Module: K, Na, Cl, CO2
- Test Modes: routine, batch, STAT, profiles
- Tests on-line: 40 refrigerated reagents (mono or dual)
- Programmable tests: 500 single or double reagent
- Speed: 300 test/h, ISE module 190 test/h
- Sample rerun and Dilution: Automatic
- Calibration and controls: Automatic
- Reading: Direct reading in 34 optical glass cuvettes
- Sample tray: 78 programmable positions: 52 samples and STATs, 26 STD and controls. Primary tubes and/or sample cups
- Barcode reader: Separate barcode readers for samples and reagents
- Sample volume: From 1 to 100 µl
- Reagent volume: From 1 µl to 470 µl
- Dimensions: Analyzer - 40 x 27 x 23 inches. (W x H x D)
- Vacuum pump: 8 x 8 x 11 inches (W x H x D)
- Weight: 209 lbs. Vacuum pump - 10 lbs.
POWER SUPPLY
- Voltage: Universal 110 - 2400 VAC with PFC
- Power consumption: 600 Watt
REFURBISHED
The instrument goes through a complete disassembly process to the chassis level and every subassembly is cleaned, inspected, rebuilt, lubricated and tested, whichever applies. The chassis and external cover are stripped and or sanded and painted. All tubings and filters are replaced. Next the instrument will be re-assembled, inspected and put thru the same verification procedures as the instrument went through initially at the factory, including conducting a full system diagnostic testing, and a rigorous multi-level Quality control testing using certified control materials.
SERVICE:
Installation, Training, Accessories, Preventive Maintenance and Service contract can be provided at an additional cost.
